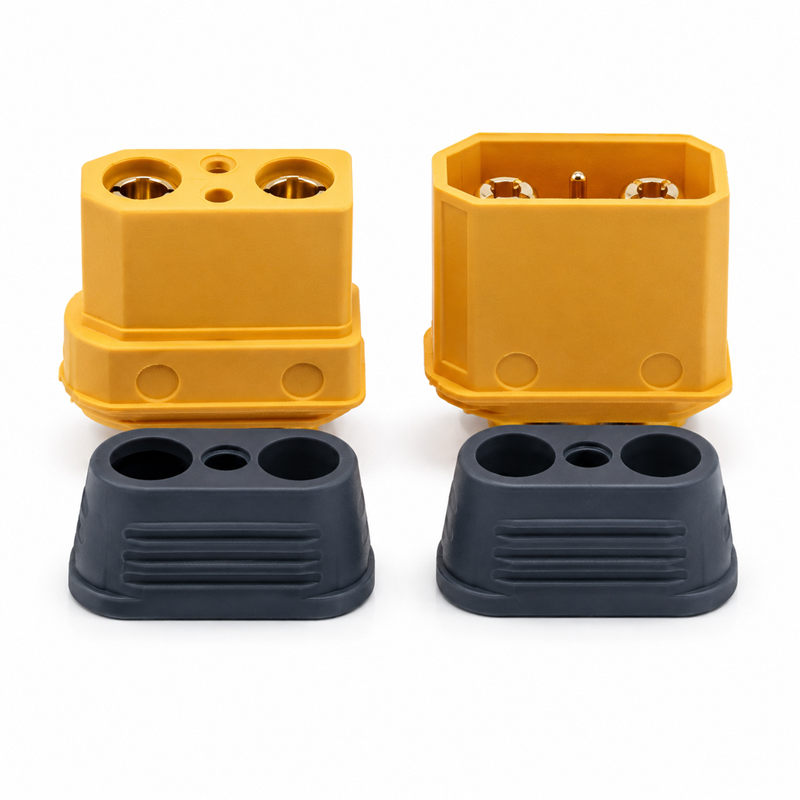

XT90I Connector with Signal Pins
The XT90I is a high-current DC connector with two main power contacts and two additional signal pins, allowing both power and low-current signal connections through a single connector.
It is suitable for battery, controller and other compatible DC power applications where an XT90-style connector with integrated signal contacts is required.
The XT90I uses a solder-type connection and is designed for low-voltage, high-current DC applications. AMASS specifies a maximum current rating of 45 A for the main power contacts using 10 AWG cable, with the signal pins rated at 1 A.
Connector type: XT90I / XT90 (2+2)
Main contacts: 2
Signal contacts: 2
Main contact current rating: 45 A max
Signal pin rating: 1 A
Connection type: Solder
Application: Low-voltage DC power and signal connection
Wire reference: 10 AWG for the published 45 A rating
