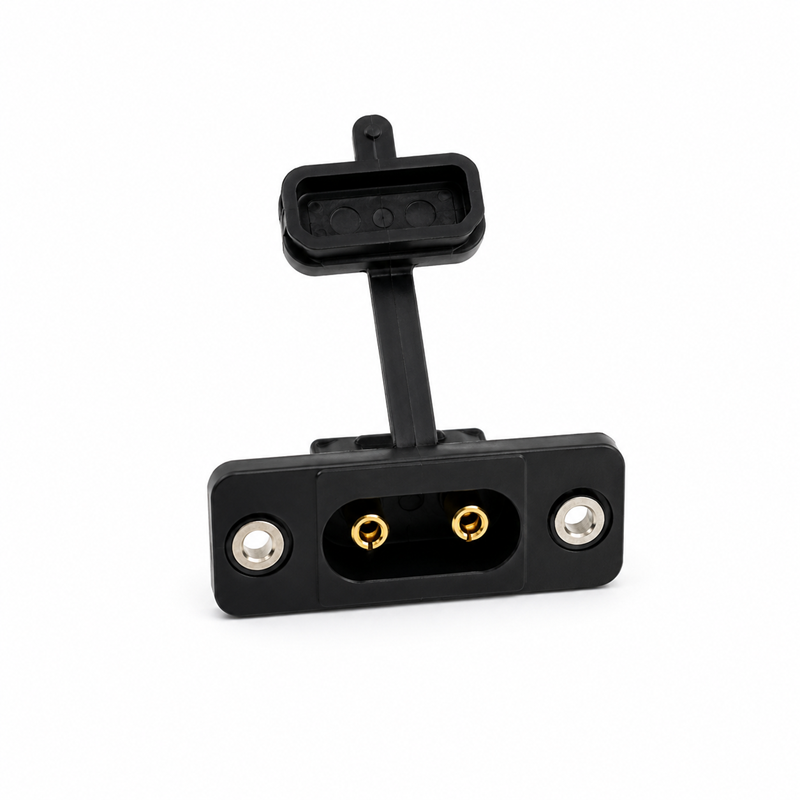

XT90E‑M Connector with Dustcover
XT90E‑M Connector with Dustcover
- Shipping from $10.50 Australia-wide · Free over $200
- In-stock orders dispatched within 48 business hours
Need larger quantities for production? Ask us for a quote.
Specifications
| Connector Type | XT90E-M (Male) |
|---|---|
| Mounting Style | Panel mount / flange mount |
| Current Rating | |
| Rated | 50A continuous |
| Peak | up to 90A |
| Voltage Rating | Up to 500V DC |
| Recommended Wire Size | Up to 10AWG |
| Contact Material | Gold-plated brass / copper alloy |
| Housing Material | Heat-resistant nylon (UL94-V0 flame retardant) |
| Operating Temperature | -20°C to +120°C |
| Connection Method | Solder terminals |
| Colour | Yellow or Black depending on model |
| Compatibility | |
| XT90 | |
| XT90H | |
| XT90S female connectors | |
About this product
Designed for high-power battery systems and demanding EV or RC applications, the Amass XT90E‑M male plug delivers reliable performance with continuous current ratings around 30 A.. Made from heat‑resistant nylon (UL94 V‑0) and featuring gold‑plated copper contacts, it ensures low resistance and long-term durability. The included PVC dustcover protects contacts from dust, debris, and accidental shorts, making it ideal for exposed or mounted configurations. With optional mounting holes and compatibility with XT90 family connectors, the XT90E‑M is a compact, safe, and robust connector choice.
Warranty and safety
See our warranty page for cover details. Your rights under Australian Consumer Law also apply.
Please read our battery safety and care guide before building, charging or storing lithium-ion packs.
Shipping and returns
We ship within Australia using Australia Post or Team Global Express. In-stock orders are dispatched within 48 business hours.
Lithium cells can have dangerous-goods transport requirements, which may affect the delivery method and time.
We don't offer change-of-mind returns, so please check the specifications before ordering. Not sure? Email sales@marsen.com.au and we'll help you choose.
