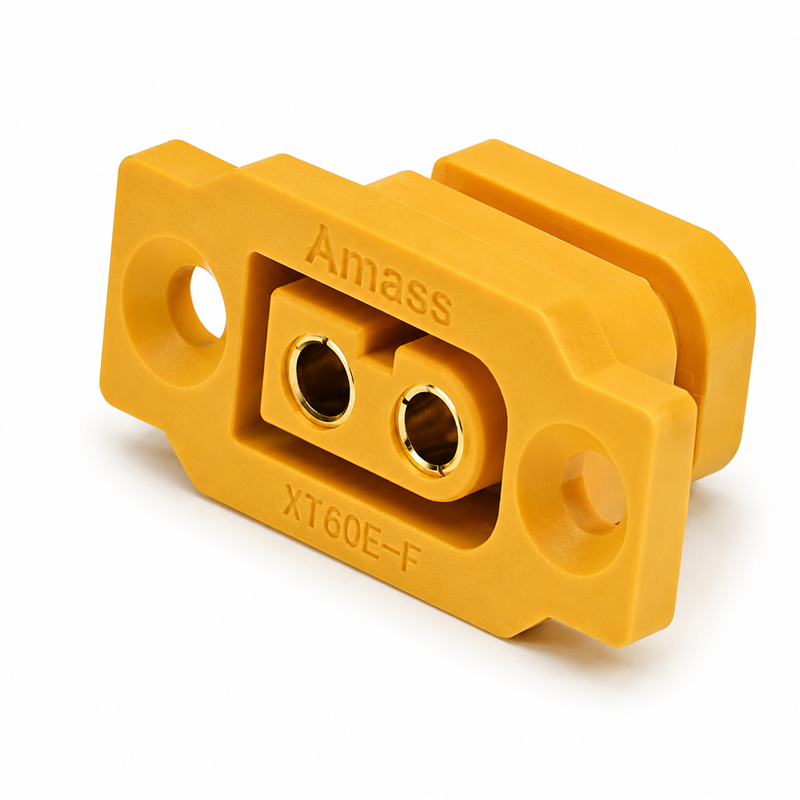

XT60E F connector
XT60E F connector
- Shipping from $10.50 Australia-wide · Free over $200
- In-stock orders dispatched within 48 business hours
Need larger quantities for production? Ask us for a quote.
Specifications
| Connector Type | XT60E-F |
|---|---|
| Connector Gender | Female |
| Mounting Type | Panel Mount |
| Poles | 2-Pole |
| Current Rating | 30A |
| Peak Current | 60A |
| Voltage Rating | DC 500V |
| Contact Material | Gold-Plated Brass |
| Housing Material | High-Temperature Nylon (PA) |
| Wire Size Compatibility | 12AWG–16AWG |
| Connection Type | Solder |
| Operating Temperature | -20°C to +120°C |
| Colour | Yellow |
| Applications | Lithium batteries, RC, drones, robotics, PEVs and high-current DC systems |
About this product
Amass XT60E F is a high‑performance, panel‑mount female DC power connector renowned in RC, robotics, and DIY electronics circles.
Engineered with a heat‑resistant nylon housing and gold‑plated brass contacts, it delivers secure, low‑resistance connections for applications demanding up to 30 A continuous (and 60 A peak) at 500 V DC. Its rugged flange mounting design, rated UL94‑V0, allows for stable panel installation and long operational life for up to 1000 mating cycles. Compatible across the XT60 family, this connector ensures reliable performance across a variety of high‑current setups
