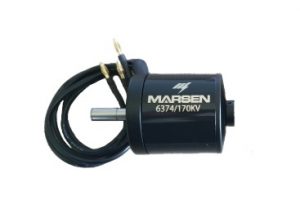

Marsen 6374 Brushless DC Motor – 170KV – Sensored
The Marsen 6374 170KV Brushless DC Motor is a high-torque sensored motor designed for demanding electric drive applications.
Built in a closed-cover configuration, it is suited to applications where smooth acceleration, strong torque delivery and dependable operation are required. The motor is designed for 36–60 V systems, making it suitable for 10S–14S lithium-ion battery configurations.
With an 8 mm shaft and IP54-rated housing, the motor offers protection against dust and splashing water, making it a practical option for electric skateboards, e-bikes, robotics and custom EV projects.
Key features
- 6374 brushless DC motor
- 170KV
- Sensored design
- Closed-cover housing
- 8 mm shaft
- 36–60 V operating range
- Suitable for 10S–14S lithium-ion systems
- High-torque output
- Smooth acceleration characteristics
- IP54 dust and splash resistance
- Designed for electric skateboard, e-bike, robotics and custom EV applications
Brand: Marsen
Model: 6374 Brushless DC Motor
Motor type: Brushless DC
KV rating: 170KV
Design: Closed-cover sensored motor
Shaft diameter: 8 mm
Voltage range: 36–60 V
Battery compatibility: 10S–14S lithium-ion systems
Ingress protection: IP54
Cooling: Closed housing with heat dissipation
Application: Electric skateboards, e-bikes, robotics and custom EV projects
Model: 6374 Brushless DC Motor
Motor type: Brushless DC
KV rating: 170KV
Design: Closed-cover sensored motor
Shaft diameter: 8 mm
Voltage range: 36–60 V
Battery compatibility: 10S–14S lithium-ion systems
Ingress protection: IP54
Cooling: Closed housing with heat dissipation
Application: Electric skateboards, e-bikes, robotics and custom EV projects
