JST XH Female Connector with 300mm Leads
$1.00
Taxes included.
Shipping calculated at checkout.
- Shipping from $10.50 Australia-wide · Free over $200
- In-stock orders dispatched within 48 business hours
Need larger quantities for production? Ask us for a quote.
Specifications
| Connector Series | JST XH |
|---|---|
| Connector Gender | Female |
| Pitch | 2.54mm |
| Wire Length | 300mm |
| Wire Gauge | 22AWG |
| Wire Type | PVC Insulated |
| Contact Material | Tin-Plated Copper Alloy |
| Housing Material | Nylon |
| Operating Temperature | -25°C to +85°C |
| Voltage Rating | 250V |
| Current Rating | Up to 3A |
| Connection Type | Pre-Wired |
| Colour | White Connector with Multi-Coloured Leads |
| Applications | BMS balance leads, battery packs, electronics, robotics, RC systems, sensors and control wiring |
About this product

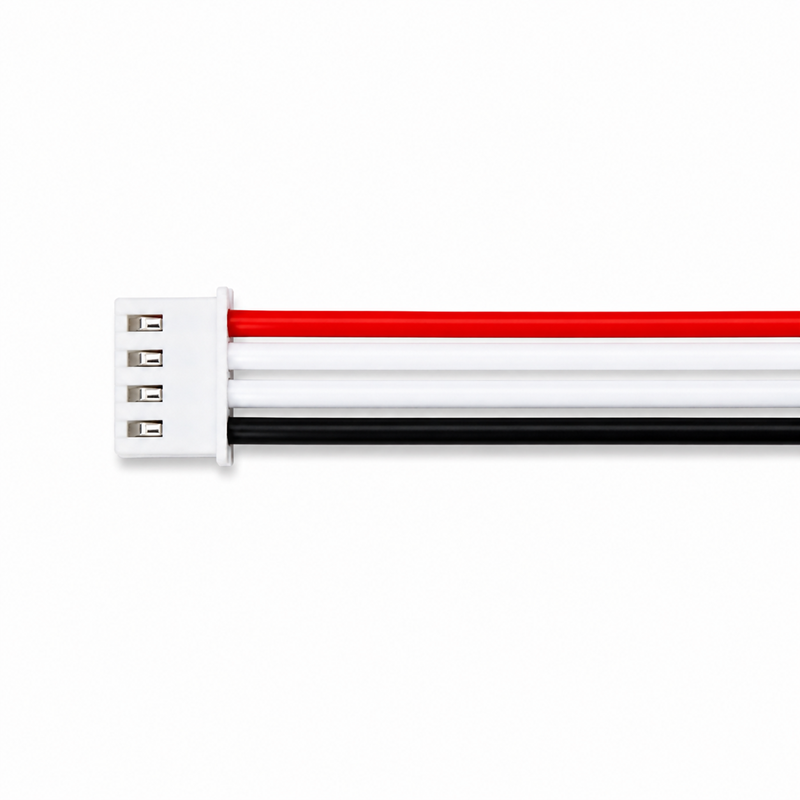

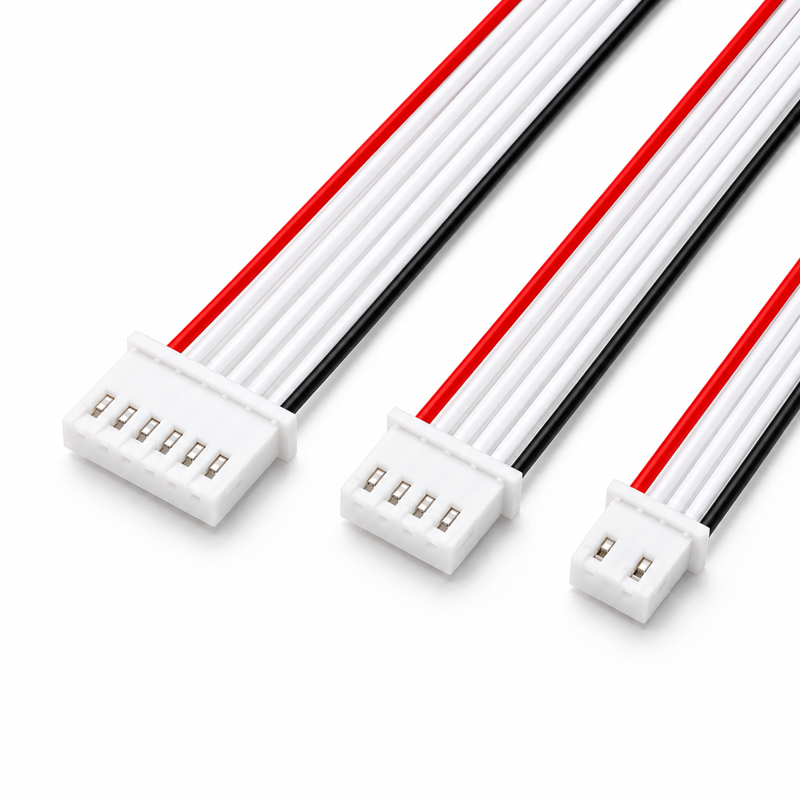

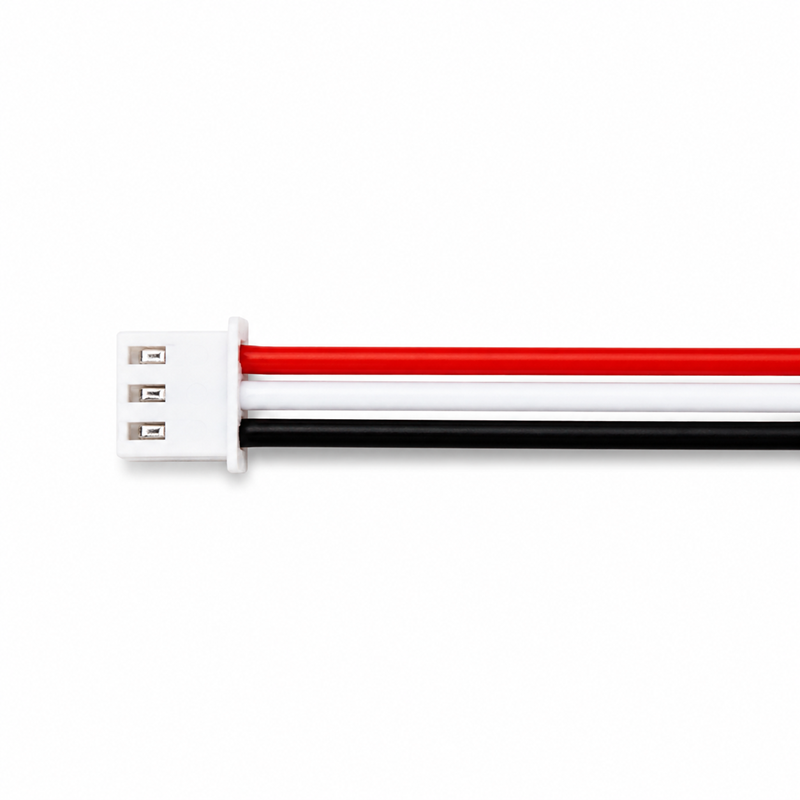

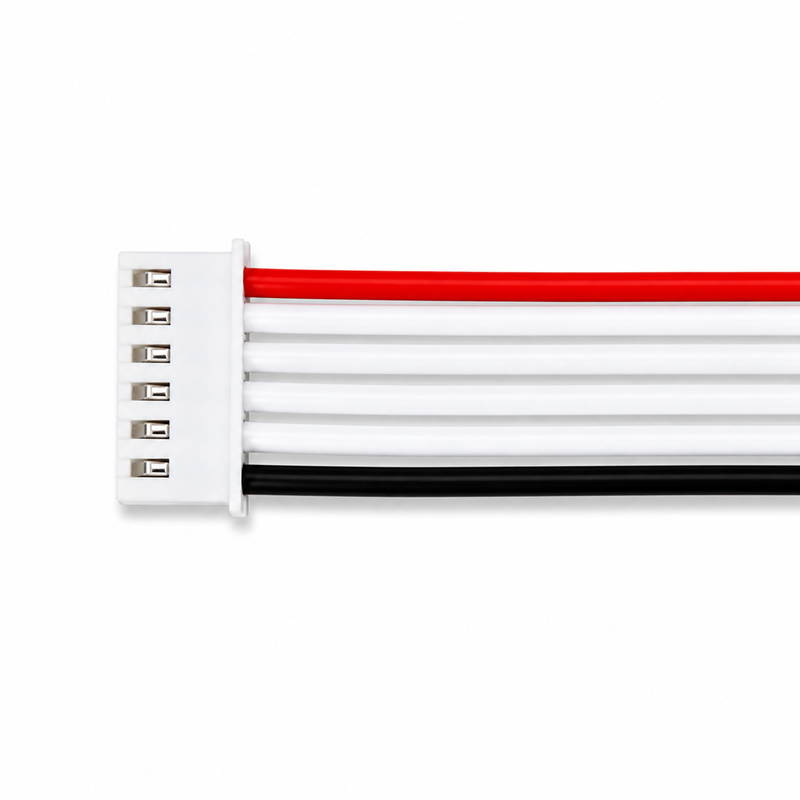

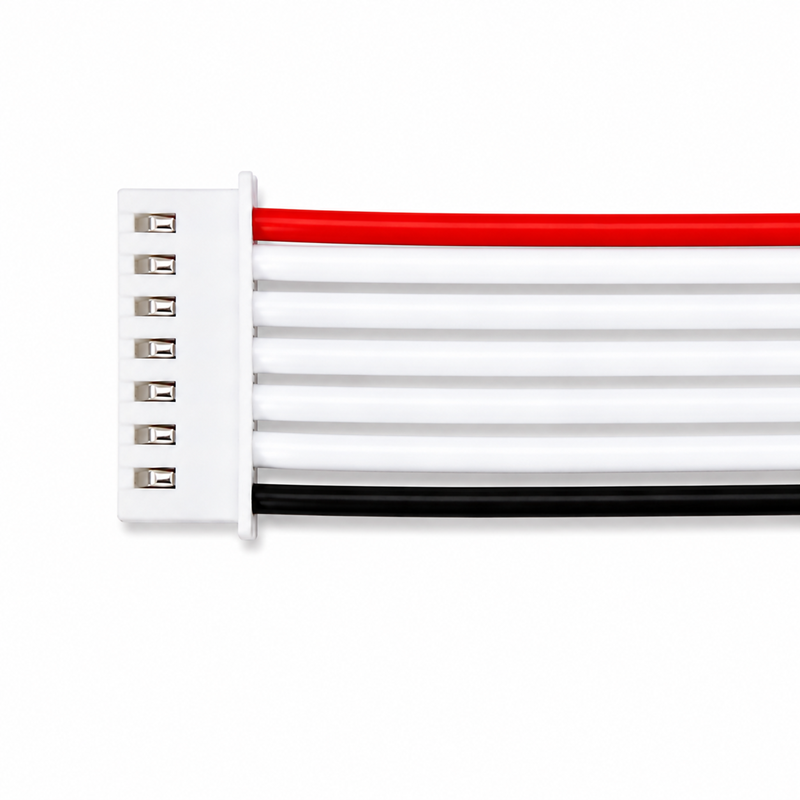

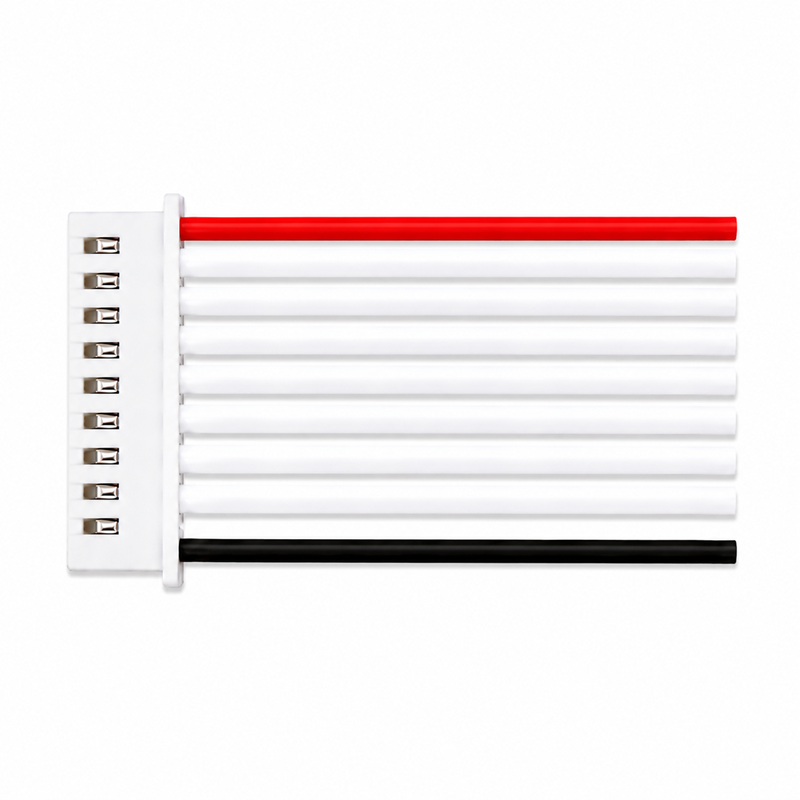

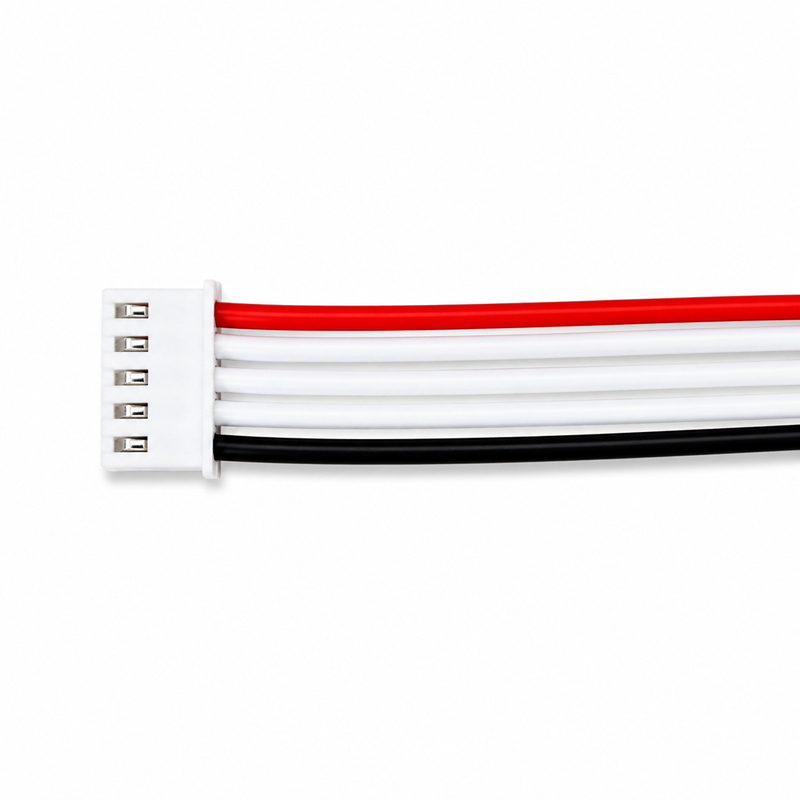

JST XH series female connectors pre-wired with 300mm long 22AWG leads, ideal for battery management systems (BMS), balance leads, electronics, robotics, RC applications and DIY wiring projects.
Manufactured with the industry-standard 2.54mm pitch, these connectors provide a reliable and compact solution for signal and low-current power connections. Available in multiple pin configurations to suit a wide range of applications.
Select your required PIN configuration to view pricing, then enter the number of connectors you wish to purchase.
Warranty and safety
See our warranty page for cover details. Your rights under Australian Consumer Law also apply.
Please read our battery safety and care guide before building, charging or storing lithium-ion packs.
Shipping and returns
We ship within Australia using Australia Post or Team Global Express. In-stock orders are dispatched within 48 business hours.
Lithium cells can have dangerous-goods transport requirements, which may affect the delivery method and time.
We don't offer change-of-mind returns, so please check the specifications before ordering. Not sure? Email sales@marsen.com.au and we'll help you choose.
