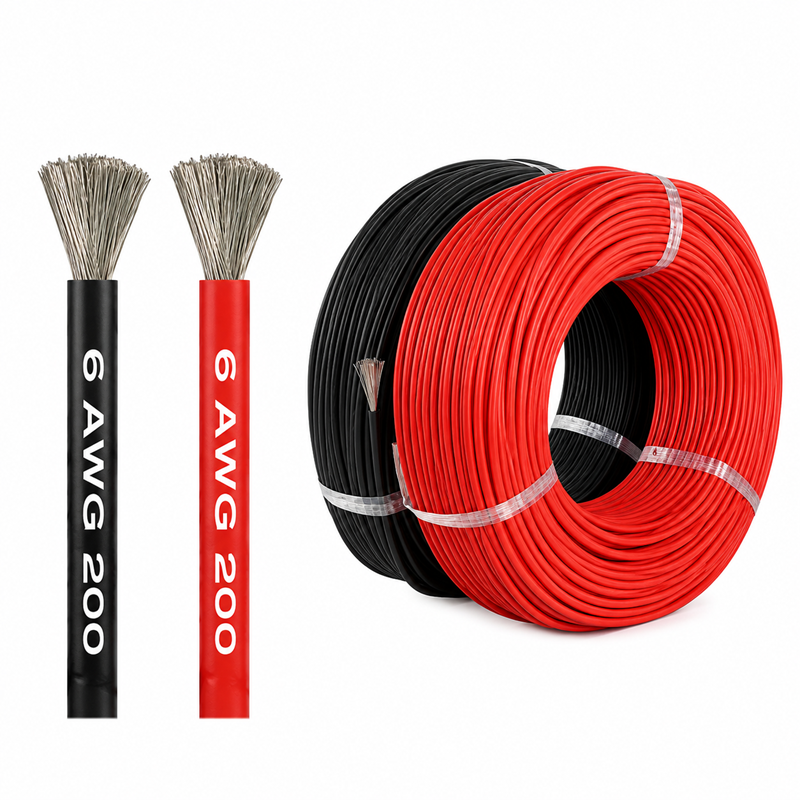

AWG Silicone Wire – Per Metre
AWG Silicone Wire – Per Metre
- Shipping from $10.50 Australia-wide · Free over $200
- In-stock orders dispatched within 48 business hours
Need larger quantities for production? Ask us for a quote.
Compare options
| Size | Cross Section | Outer Diameter | Conductor Resistance | Recommended Current at 20°C |
|---|---|---|---|---|
| 22 AWG | 0.30 mm² | 1.7 mm | 88.5 Ω/km | 3A |
| 20 AWG | 0.50 mm² | 1.8 mm | 63 Ω/km | 5A |
| 18 AWG | 0.75 mm² | 2.3 mm | 39.5 Ω/km | 6A |
| 16 AWG | 1.26 mm² | 3.0 mm | 25 Ω/km | 10A |
| 14 AWG | 2.00 mm² | 3.5 mm | 15 Ω/km | 20A |
| 12 AWG | 3.40 mm² | 4.5 mm | 10 Ω/km | 30A |
| 10 AWG | 5.25 mm² | 5.5 mm | 6.3 Ω/km | 50A |
| 8 AWG | 8.25 mm² | 6.5 mm | 3.7 Ω/km | 80A |
| 6 AWG | 16.00 mm² | 8.5 mm | 1.9 Ω/km | 140A |
Specifications
| AWG Silicone Wire Specifications | |
| Those figures come directly from the table on your datasheet. | |
| General Specifications | |
| Conductor | Tin-plated copper |
|---|---|
| Insulation | Silicone |
| Rated Voltage | 600V |
| Temperature Range | -60°C to +200°C |
| Construction | Ultra-soft, fine-stranded high-temperature silicone wire |
About this product
Sold by the metre. The price shown is for 1 metre. Set the quantity to the number of metres you need, for example quantity 3 = 3 metres.
Our premium AWG silicone wire is designed for battery building, RC, mobility, drones, power tools, and high-performance electrical applications requiring flexible, durable, and reliable cable. Manufactured using high-strand copper conductors and high-temperature silicone insulation, this wire offers excellent flexibility, current handling, and resistance to heat and abrasion.
Available in a full range of sizes from 24AWG to 6AWG in black and red. White available in 22AWG. Suitable for custom battery packs, charging leads, ESC wiring, power distribution, and general electrical projects.
Choose your gauge and colour, then set the quantity to the number of metres you need.
