Molicel P50B 3.6V 5000mAh

Molicel P50B Ultra-high power INR 21700 sets a new standard in high performance Li-ion cells with an energy density of 265Wh/kg and 60A discharge.
It features fast 5C charging along with class leading cycle life of 1400 cycles.
Low temperature operation down to -40C, high thermal stability and high reliability.

Using advanced single wall Carbon nanotubes the P50B is a next generation cylindrical cell suitable for hyper EV’s, racing cars, eVTOL’s and heavy lift drones.

Marsen Energy has partnered with Molicel as the only approved seller in Australia to provide retail, wholesale and battery pack solutions to the Australian market.



Qty Discount Price
50-99 35% $14.95
100-499 40% $13.80
500+ 45% $12.65
For wholesale orders email [email protected]



https://www.molicel.com/inr-21700-p50b/

$23.00

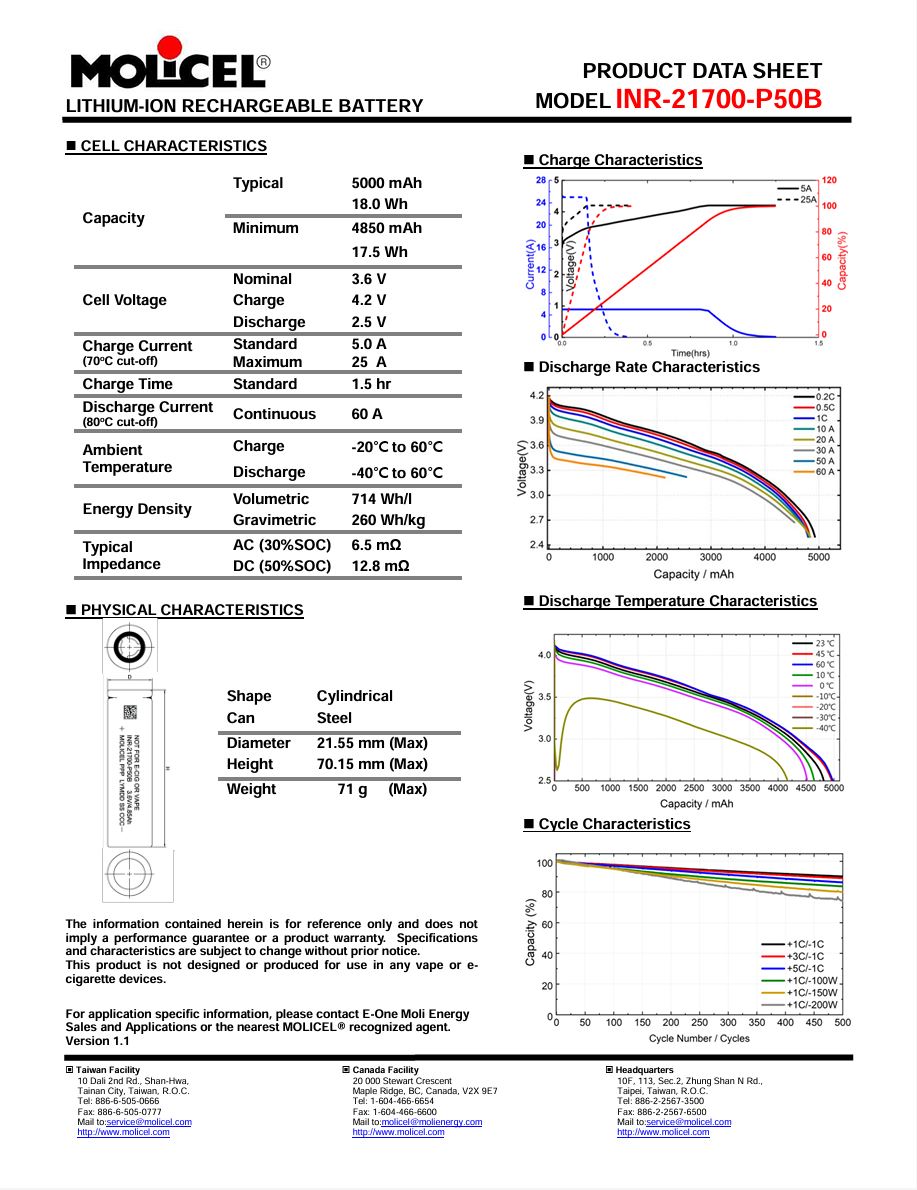

Specifications
  • Model: Molicel P50B
  • Format: 21700
  • Positive terminal style: Flat-top
  • Protected (PCB): No
  • Manufacturer: Molicel
  • Country of Origin: Taiwan
  • Chemistry: INR
  • Max. continuous discharge current: 60A
  • Max discharge: 75A
  • Rated capacity (minimum): 4850 mAh
  • Nominal capacity: 5000 mAh
  • Nominal voltage: 3.6 V
  • Discharge end voltage: 2.5 V
  • Charging voltage: 4.20 +/- 0.03 V
  • Standard charging current: 5 A
  • Maximum charging current: 25A
  • Dimensions: Diameter 21.55mm Length 70.15mm
  • Weight: 71g
  • Internal Resistance AC (30% SOC) 6.5mΩ
Applications

Important Information
  • Never completely discharge Li-ion battery (below 2.5V under load).
  • Charge fully to 4.2V before first use.
  • Never use force to install (insert) Li-ion battery.
  • Do not use old and new battery cells together.
  • Use only a high quality battery charger.
  • Do not expose to heat.
  • Do not short (connect) positive (top), and negative (bottom) battery terminals (contacts). Keep battery that is not in use in plastic holder (or any insulating container).
  • Never charge battery over 4.25V (another reason to use high quality battery charger).
  • Do not charge unattended unless using an intelligent charger that shuts off at full charge.
  • Do not store your Li-ion batteries fully charged (for extended period of time).
  • Store in cold and dry place at approximately 3.7V (storage charge).
  • After battery is discharged don’t leave it discharged, charge it as soon as possible.
