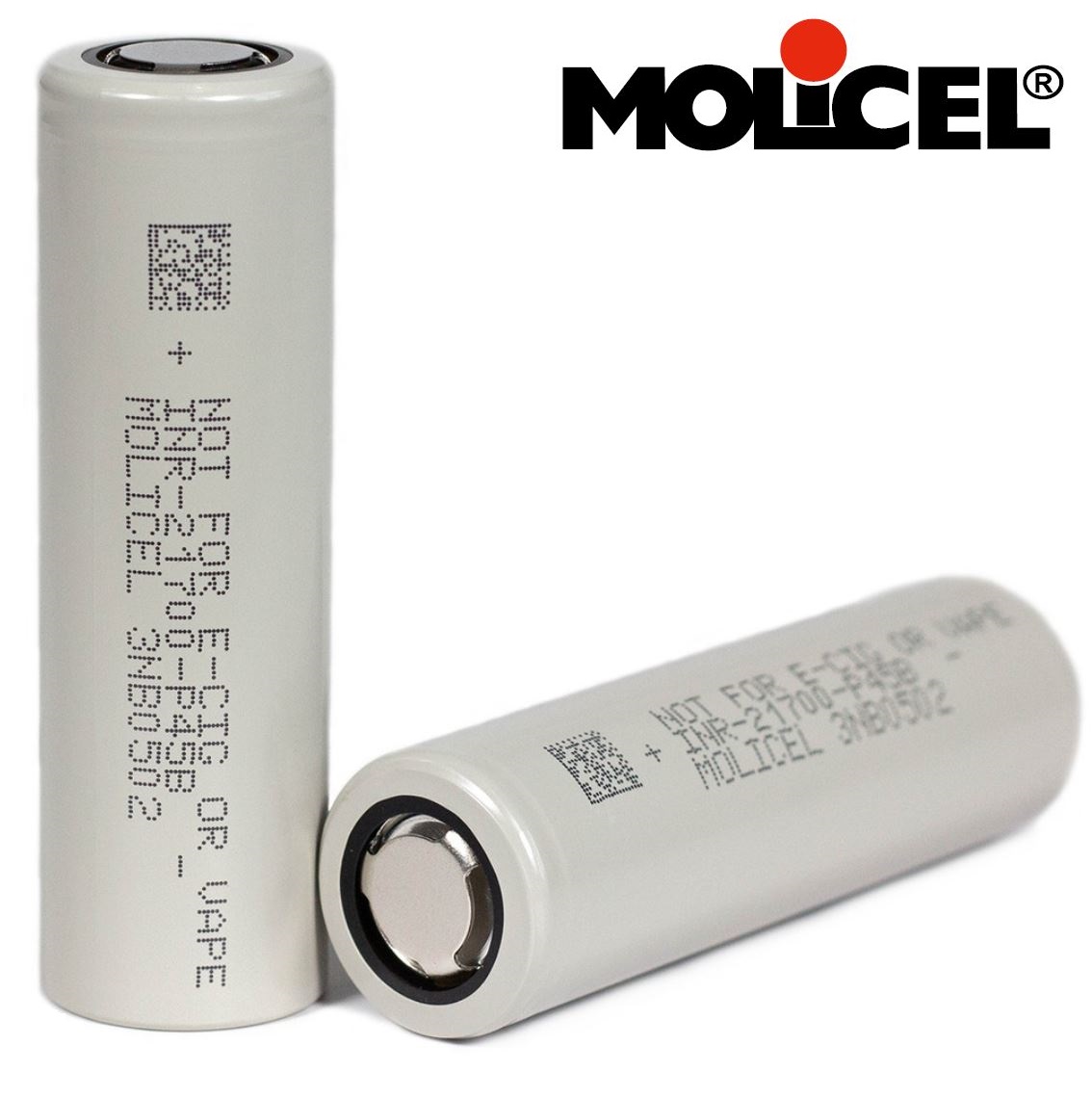

Molicel P45B 3.6V 4500mAh

Molicel P45B
Molicel P45B

Molicel P45B 3.6V 4500mAh

Molicel P45B Ultra-high power cell is Molicels first high power low impeadance cell. The low impeadance reduces thermal build up during high current application as well as increasing cycle life. It has a high discharge current of 45A discharge and cycle life of 700+ along with 3C charging this makes the P45B suitable for premium segment in EV, eVTOL, PEV’s and heavy lift drones.
Low temperature operation down to -40C, high thermal stability and high reliability.

Marsen Energy has partnered with Molicel as the only approved seller in Australia to provide retail, wholesale and battery pack solutions to the Australian market.

Qty Discount Price
20-49 20% $14.80
50-99 35% $12.03
100-499 40% $11.10
500+ 45% $10.18
For wholesale orders contact: [email protected]

https://www.molicel.com/inr21700-p45b/

$18.50

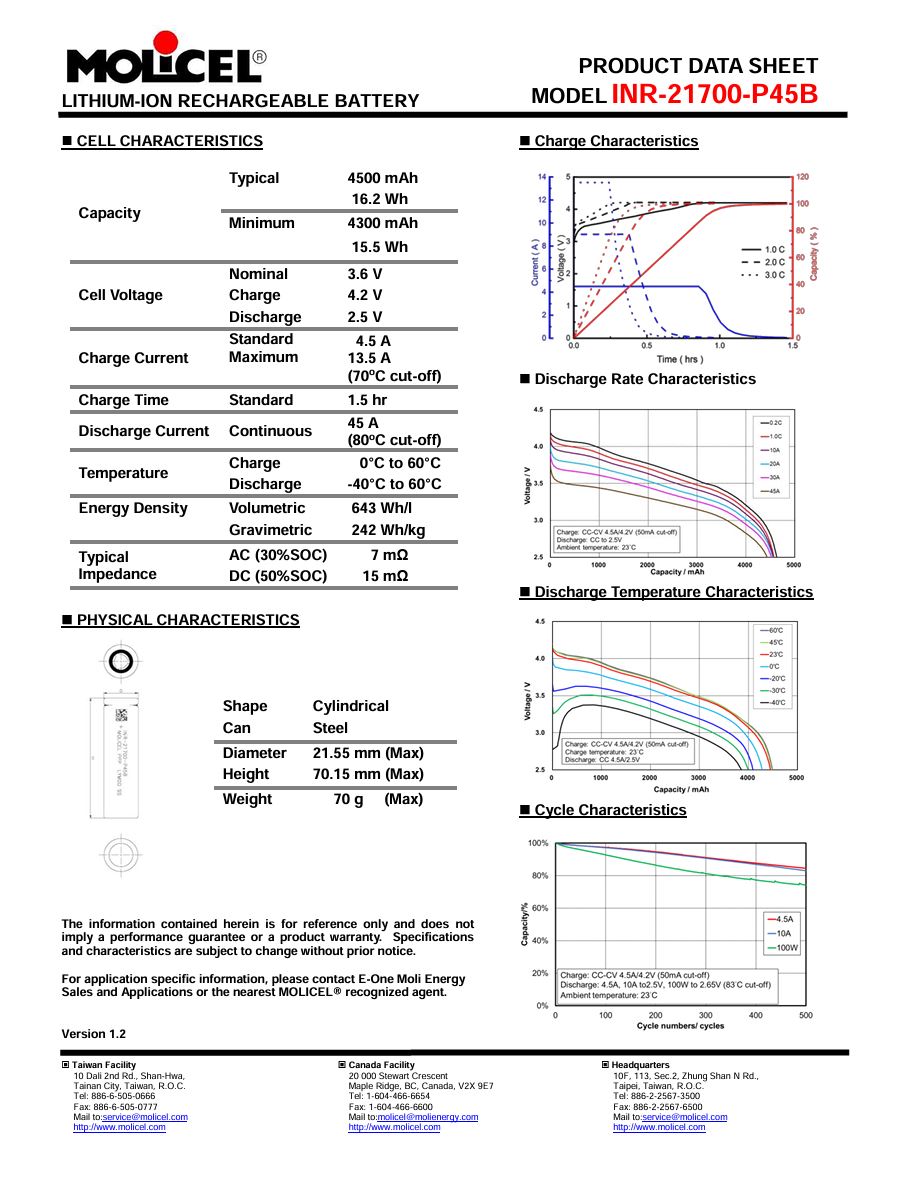

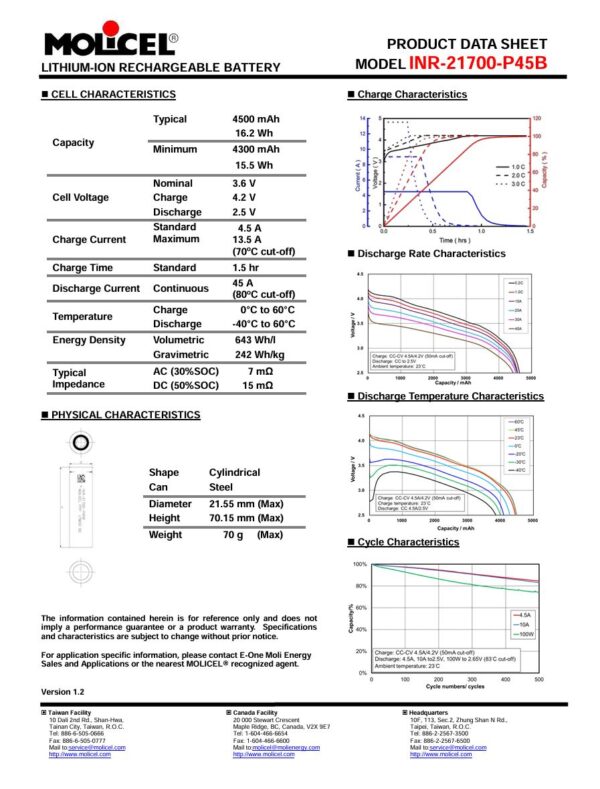

Specifications
  • Model: Molicel P45B
  • Positive terminal style: Flat-top
  • Protected (PCB): No
  • Manufacturer: Molicel
  • Country of Origin: Taiwan
  • Chemistry: INR
  • Max. discharge current: 45A
  • Rated capacity (minimum): 4300 mAh
  • Nominal capacity: 4500 mAh
  • Nominal voltage: 3.6 V
  • Discharge end voltage: 2.5 V
  • Charging voltage: 4.20 +/- 0.03 V
  • Standard charging current: 4.5 A
  • Maximum charging current: 13.5A
  • Dimensions: Diameter 21.55mm Length 70.15mm
  • Weight: 70g
  • Internal Resistance AC (30% SOC) 7mΩ
Applications
Important Information
  • Never completely discharge Li-ion battery (below 2.5V under load).
  • Charge fully to 4.2V before first use.
  • Never use force to install (insert) Li-ion battery.
  • Do not use old and new battery cells together.
  • Use only a high quality battery charger.
  • Do not expose to heat.
  • Do not short (connect) positive (top), and negative (bottom) battery terminals (contacts). Keep battery that is not in use in plastic holder (or any insulating container).
  • Never charge battery over 4.25V (another reason to use high quality battery charger).
  • Do not charge unattended unless using an intelligent charger that shuts off at full charge.
  • Do not store your Li-ion batteries fully charged (for extended period of time).
  • Store in cold and dry place at approximately 3.7V (storage charge).
  • After battery is discharged don’t leave it discharged, charge it as soon as possible.
