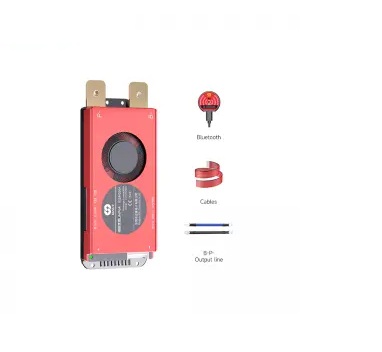

Daly M Series Smart BMS 14S 200A

Daly M Series Smart BMS 14S 200A

Daly M Series Smart BMS 14S 200A

Daly M Series Smart BMS 14S 200A

This 14‑cell, 48 V version of the Daly M Series supports 200 A continuous discharge with peaks near 600 A. It includes passive balancing (~30 mA), comprehensive protections (overcharge, short circuit, temperature), and supports Bluetooth/UART/CAN/RS485 interfaces for real‑time monitoring and configuration. Built for high‑power, multi‑string battery systems such as RVs, golf carts, industrial vehicles, and solar energy storage setups

$220.00

Specifications

Daly M Series Smart BMS 14S 200A

Model Daly M Series Smart BMS (14S, 200 A)
Continuous Current 200 A
Peak Current Up to ~600 A
Internal Resistance ≤ 20 mΩ
Charge Voltage 4.25 V ± 0.05 V per cell
Balance Voltage 4.18 V detect / release
Balancing Current ~30 mA ± 5 mA per cell
Discharge Cutoff 2.7 V detect, re-enable at 3.0 V
Protection Features Over-charge/discharge, over-current, short-circuit, temperature limits
Communication Ports Bluetooth†, UART, RS485, CAN
Total Consumption Operating current ~100 µA; sleep <20 µA at low SOC
Operating Temp. –20 °C to +70 °C
Housing & Display Common port configuration, optional fan or module accessories
Weight & Size Approximately 1446g, sized ~22.86cm × 15.24cm × 3.05cm
Applications

Daly M Series Smart BMS 14S 200A

  1. Electric Vehicles (EVs)
    – Ideal for e-cars, e-motorcycles, and e-scooters requiring robust current handling and smart monitoring.

  2. Golf Carts & Buggies
    – Ensures safe and balanced power delivery in high-discharge leisure and utility vehicles.

  3. Recreational Vehicles (RVs) & Camper Vans
    – Manages large 48V Li-ion or LiFePO₄ battery packs with integrated Bluetooth/CAN for remote monitoring.

  4. Marine & Off-Grid Systems
    – Suitable for boats, yachts, and remote solar installations with large battery banks.

  5. Industrial Equipment & AGVs
    – Used in forklifts, autonomous guided vehicles, and warehouse robotics due to high reliability and current tolerance.

  6. Home & Commercial Energy Storage Systems (ESS)
    – Works with inverter and solar systems for managing high-capacity lithium storage safely.

  7. Power Backup Systems (UPS)
    – Protects large battery packs in backup systems requiring instant current delivery.

  8. High-Power DIY Battery Builds
    – Trusted by battery builders for high-current applications with customizable communication and protection parameters.
